Studer S32 PUNCH Grinder for sale
Availability - 4 to 12 weeks negotiable
Complete Rebuild Project -Brand new ball screws
Complete NEW paint

NO Maintenance necessary for 20,000 Hours. Only oil change

Possible Partial rebuild

Call for Pricing- Ven -937 609 5387





Machine Specifications Studer S32

  • PUNCH GRINDER2  OD wheel Right and right configuration. 20  inch wheel

  • Automatic B axis with 1 deg hirth coupling.

  •  C, X and Z Direct Travel measuring system 0,0001mm (linear)  Worth 25,000 USD

  • Granitan Base

  • Pictogramming



The machine is planned for a full rebuild in 10 weeks. If you want the machine sooner, we can discuss the specifications.

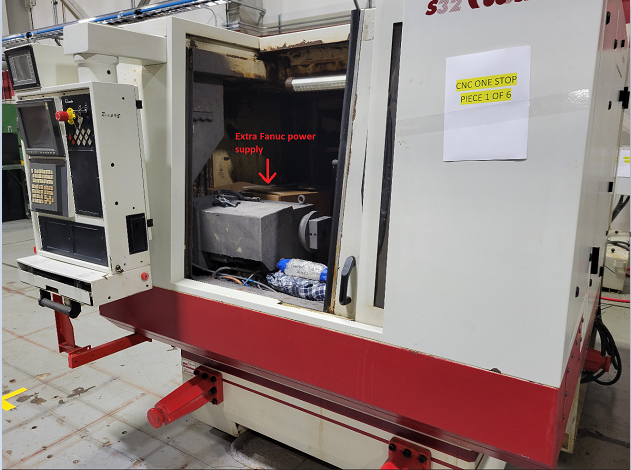

STUDER S32 CNC 1 OD, Punch grinder, Form grinder. 400 mm, 175 mm, 500 Diameter

Wheel head 0 or 30 degrees

Variable speed drive for OD

Variable speed dresser motor

Heidenhain scale on C axis for accuracy of contour - Roundness .0002 mm in C. High Precision for Form, Punch Grinding and thread grinding.

Fanuc 160i

PCU Pendant

Pictogrammming for Punch grinding on the control

Part length 400 mm, , Center line 175 mm Travel X 300 mm - Z 450 mm

Speeds .001 to 15000 mm/min - Robust X axis to work with 750 RPM C axis to make the form.

Wheel head fitting taper - dia 73 mm

Grinding wheel 500 X63 X 203 Circum speed 50 m/sec

Workhead 1 - 1500 rpm Morse 4/ Dia. 70 mm(2.7")

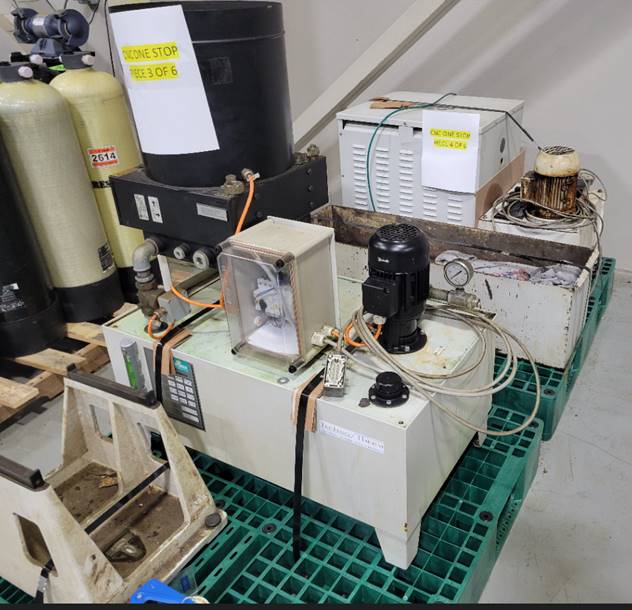

  • Hydraulic system
  • Tailstock

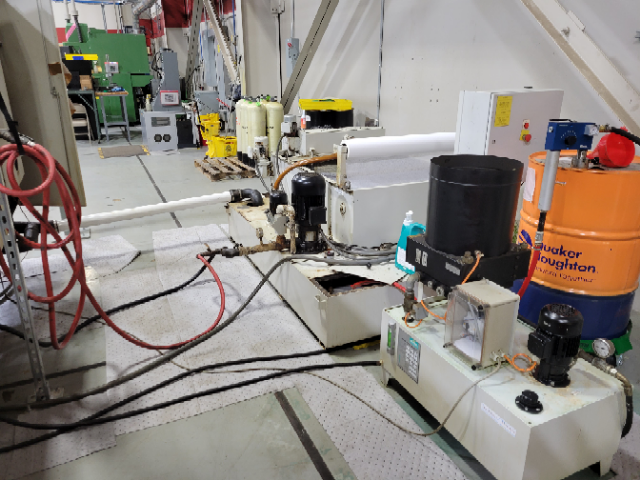

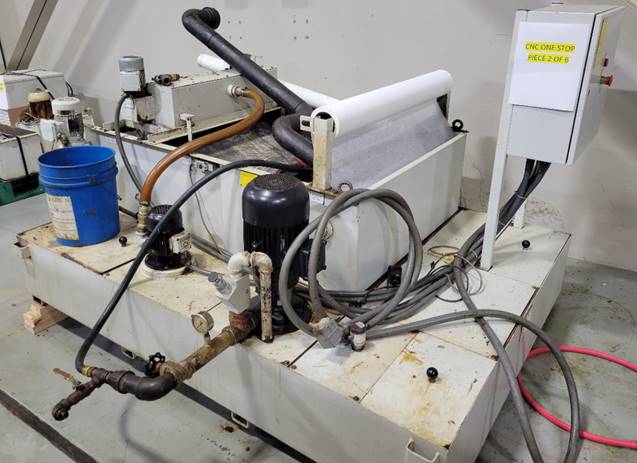

  • Paper band filter Included
  • Sensitron
  • Load 35KVA
  • Pressure 5.5 Bar
  • Weight 15,000LB



This is how we overhaul the machine - Machine overhauled by us will not need any major maintenance for the next 15 years 20,000 hours. All you have to do is change oil and grease the necessary items to Studer recommendations

  • X axis ways cleaned and checked for geometrical accuracy

  • Z axis ways cleaned and checked for geometrical accuracy

  • B axis checked for leaks and seals changed as necessary. Geometrical alignment done

  • Head stock checked for accuracy, bearing changed as necessary

  • Tail stock - Seals changes and checked and aligned for accuracy

  • Way covers checked for integrity and replaced as necessary

  • All wipers and seals changed

  • Hydraulics completely overhauled

  • Painted completely like new. $25,000 in paintings.

  • Centerline height - Corrected

Learn about our Goals, Warranty and certification process



                  Call *Ven at 937 609 5387 or Ven@cnconestop.com
