Newly arrived machines
The Following machines arrived and are waiting to be rebuilt

These Are The Studer Machines Coming Up For Sale-

  • Studer S36 - Fanuc 16 TB control, 400mm Z axis, Pictogramming, Centerline 175 mm, B axis 0 or 30 automatic, 1 OD,  12 weeks. Reference :STIH
  • Studer S36 - Fanuc 16 TB control, 400mm Z axis, Pictogramming, Centerline 175 mm, B axis 0 or 30 automatic, 1 OD,  12 weeks. Reference :STIH
  • Studer S40 - Fanuc 16 TB control, 1000mm Z axis, Pictogramming, Centerline 175 mm, B axis 1 degree, 2 OD, 1 ID,  10 weeks. Reference :533
  • Studer S40- Fanuc 16 TB control, 1600mm Z axis, Pictogramming, Centerline 175 mm, B axis 1 degree automatic, 1 OD,  1ID, 14 weeks. Reference :579
    February Arrival
    S40 - 1600 mm - 2 machines - 2005 models- 2 OD wheels - i Control - Sold As- is- In good condition
    S30 - Lean pro - 1 OD, 1 ID- Rebuild available
    S31 - 2 OD- SOld As - is. Rebuild option available


  Visit REBUILD YOUR STUDER PAGE to learn of the Differences

Pre Order Option

Machines are being rebuilt. If you want any other machine you have or interested in a machine, let us know. We can pre build that for you in cases by putting your machine on priority list.

We buy machines, refurbish it and put it on sale. We have customers on a wait list for different models. If you are in our list we will call you as soon as we identify a good machine. We can finish the process in 4 to 8 weeks or choose to do a complete rebuild with additional options.

We can do all upgrades like Gauging, thread grinding, out of round grinding, robotics and many more.

All machines are overhauled to original specifications with Studer parts. We have too much respect for the machine to change the seals with local parts to save that few dollars. We want to see your machine run another 30 years like we have seen in the last 30 years.

Import Option
  • We can import machine for you. Available good Studer in the USA is limited.  But there are a few machines available in France, Germany and Switzerland. If you are interested we can help you import the machine. We go there and evaluate the machine. We can Facetime you. We buy the machine right there and arrange a packer and shipper and ship it to the USA. We will help you clear the customs and get it to your facility. We will help you install and do training and help you with all necessities. Yes, you are paying us to have a piece of mind and cut all the uncertainties. We are service guys on your side and get straight talk from us

Recently Sold

  • Studer S40- Fanuc 16TB, Pictogramming, 2 OD, Front and Back, 2 Variable speed drive,  configuration, Automatic B axis, 1 degree Hirth coupling, 20 inch wheel- Rebuild starts in 8 week. - SOLD

  • Studer S40- Fanuc 16GCA, Progamming macro cycles 2 OD, Front and Back, 2 Variable speed drive,  configuration, Automatic B axis, 5 degree Hirth coupling, 20 inch wheel- Rebuild starts in 8 week. - SOLD

  • Studer S31 - Fanuc 21iT, Pictogramming, 2 OD, Left and Right, 18 inch wheel and 18 inch wheel, 1 Variable speed drive, 1 ID,  variable speed drive, Automatic Electrical B1 and B2 axes, Indefinite B axis .0001 degrees, 1 degree Hirth coupling, Swing down dresser, Non Round grinding, Thread Grinding  and much more -  Sold

  • Studer S30 Leanpro- Fanuc 16TB, Pictogramming, 2 OD, Left and Right, 20 inch wheel and 16 inch wheel, 1 ID wheel 20K speed, Swivel-able B axis, 1 degree Hirth coupling. All new Ball screws - Sold

  • Studer S33- Fanuc 0iTD, Pictogramming, 1 OD, 1 degree Hirth coupling, Swing down dresser-  Sold

  • Studer S33- Fanuc 21iTb, Pictogramming, 1 OD, 1ID, 2.5 degree Hirth coupling, Swing down dresser-  Sold

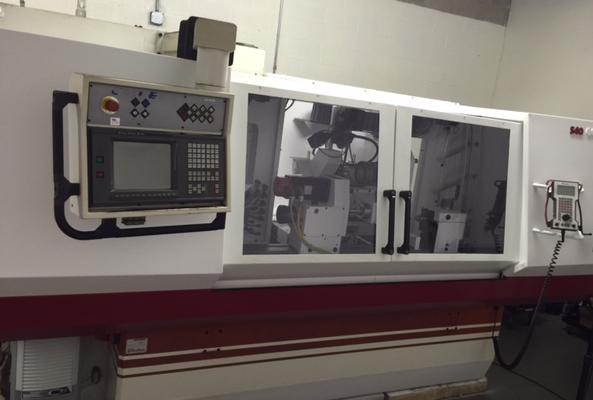

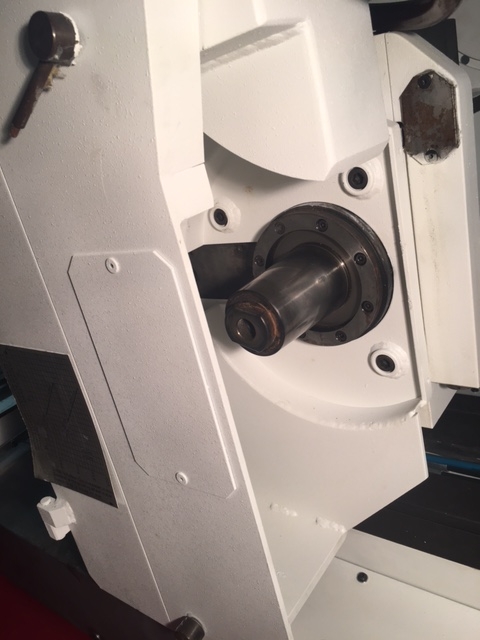

Pictures Of A Few Machines Rebuilt

S 30

S 40

S 40

S 40

Added Options Available

  • Centerline increase possible. To run a bigger diameter parts. Enormous savings.

  • Complete new paint after Rebuild.

    •

  • Training and Turnkey available.

  • When you pre buy, your price would be about 30K less than buying it from us after we finish the rebuild.

  • Control upgrade, with thread grinding and non round grinding options available.

Expected Result Of Two Levels of Machinery Rebuild

  • Refurbished machine. Our Goal is 10,000 hours of Life with no Mechanical expenses.

  • Rebuilt machine. Our Goal is 20,000 hours of Life with no Mechanical expenses

Our Goals, Warranty and certification process







See the pictures below of a rebuilt machine with a Brand New Base

Word of wisdom on Studer Grinding business

Are you a job shop owner wanting to compete with a million dollar machine. At $20 an hour your pay off of the machine is less than 4 years. This machine price and quality can help you quote for jobs at $60/hour and still leave a healthy margin. IN today's market grinding jobs are being quoted from $120 to $450/ hour. There are jobs everywhere.



The machine effectively can be sold after 10 years for a 100K. Your write off on this machine is only a fraction of your competitor who buys the machine at new machine price.

If you buy a million Dollar machine, after 10 years it will be worth 150K.  Your depreciation would be 800K plus. Your hourly rate has to be in the $150/hour. This is for big corporations, where risk is not rewarded.

You can compete with your competitor with a new machine for  1/10th of a price. In grinding new machine does not necessarily mean lower cycle time. I don't know of any grinding company who went out of business using these machines. If you buy this machine at right price and do the basic maintenance right, it is impossible to loose money, if you know how to keep 10 customers happy.

To make a seven figure income you don't have to have 50 employees bringing in 10 million in revenues with a capital of 10 million. If you know how to get every efficiency out each machine / operator/ programming/ maintenance/ machine cost, one machine should make you 100K to 750K a year.

Studer parts are available for a long time. I have bought parts for a machine made in 1940s. Fanuc parts are available for a long time. Service available everywhere. I have bought parts for Fanuc 2000 control which was made in 1960s.

               Call *Ven at 937 609 5387 or Ven@cnconestop.com
